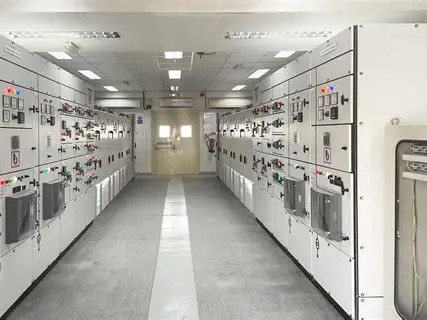

LV/MV/HV Panel Installation & Commissioning Services
Watts & Ergon leads in LV/MV/HV panel installation in Dubai, offering expert commissioning for industries. Our LV/MV/HV Panel Installation & Commissioning Services provide a comprehensive, turnkey solution for electrical power distribution across residential, commercial, and heavy industrial sectors in the UAE. We manage the entire lifecycle of power infrastructure, from the precision positioning and busbar coupling of Low Voltage (LV) MDBs and MCCs to the sophisticated installation of Medium Voltage (MV) switchgears (up to 33kV) and High Voltage (HV) Gas Insulated Switchgear (GIS) substations.
Our engineering team ensures strict adherence to IEC/IEEE standards and local utility regulations (DEWA, ADDC, and Etihad WE), performing rigorous commissioning protocols including primary and secondary injection testing, insulation resistance verification, and protection relay coordination. By combining advanced diagnostic tools with a “Safety-First” approach, we guarantee that your electrical assets are not only energization-ready but optimized for maximum operational reliability and fault protection.
Turnkey Electrical Panel Installation
Our Turnkey Electrical Panel Installation services provide a comprehensive, end-to-end solution for power distribution infrastructure, managing every phase from initial design and procurement to final utility energization. We specialize in the seamless integration of Low Voltage (LV), Medium Voltage (MV), and High Voltage (HV) systems, ensuring that Main Distribution Boards (MDBs), Motor Control Centers (MCCs), and sophisticated Gas Insulated Switchgear (GIS) are installed with absolute precision. Our turnkey approach eliminates the complexity of multi-vendor coordination by providing DEWA/ADDC-approved engineering oversight, busbar coupling, cable termination, and rigorous commissioning testsāincluding primary injection and protection relay coordination. By adhering to strict IEC standards and local safety regulations, we deliver a “ready-to-power” system that is optimized for operational reliability, fault protection, and long-term energy efficiency.
Expert Switchgear Commissioning
Watts & Ergonās MV/HV switchgear commissioning in UAE includes protection relay configuration. Expert Switchgear Commissioning is a critical, multi-stage validation process that ensures your electrical distribution assets are safe, reliable, and fully compliant with international standards such as IEC 62271 and local utility regulations (DEWA/ADDC). Our expert-led approach transitions the system from a static installation to a dynamic, “energization-ready” state through rigorous diagnostic testing, including Contact Resistance Measurement (CRM), Insulation Resistance (IR) verification, and sophisticated Protection Relay Coordination. We utilize advanced primary and secondary injection testing to simulate fault conditions, ensuring that breakers and relays trip with millisecond precision to protect your downstream equipment. By integrating thermal imaging and SF6 gas quality analysis for High Voltage (HV) units, we provide a definitive “Certified for Service” report that minimizes the risk of arc-flash incidents, reduces unplanned downtime, and guarantees the long-term operational integrity of your power infrastructure.
Powering Progress: Expert LV, MV & HV Panel Installations
1. Low Voltage (LV) Solutions
Systems up to 1000V are the primary touchpoints for end-users. We focus on safety and precision distribution.

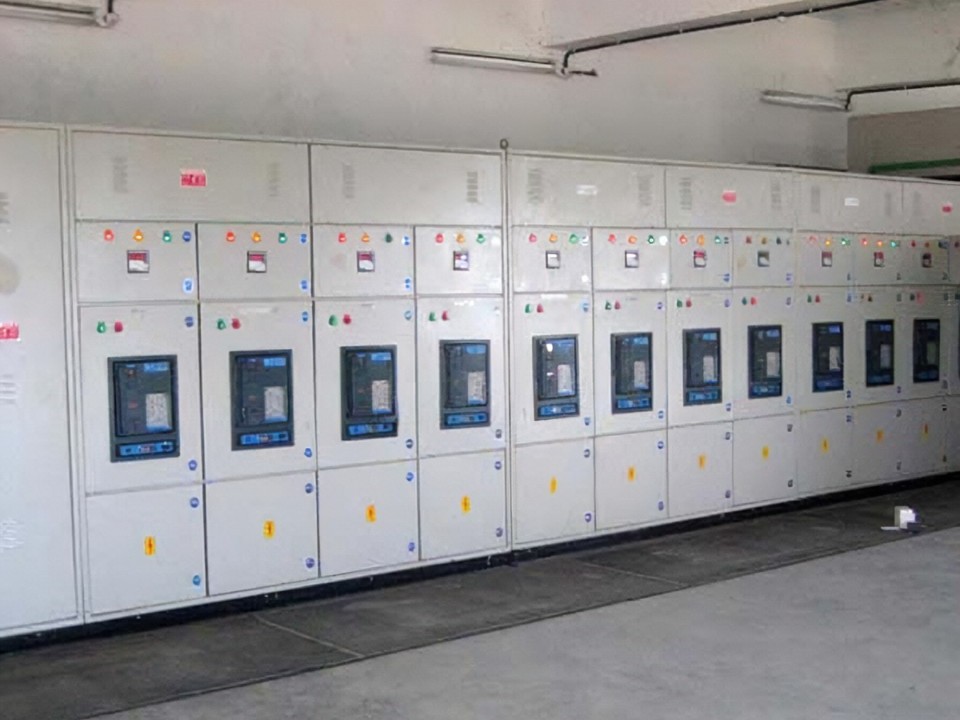

Main Distribution Boards (MDBs)
High-capacity gateways featuring precision busbar coupling and advanced thermal monitoring for site-wide power entry.
Motor Control Centers (MCCs)
Integrating VFDs and Soft Starters to eliminate inrush current stress on industrial machinery and automation lines.
2. Medium Voltage (MV) Systems
Bridging the gap between the utility grid and your facility (11kV to 33kV) with specialized engineering.
- Switchgear Installation: Deployment of AIS and GIS units optimized for specific switchroom footprints.
- Ring Main Units (RMUs): Critical for loop network redundancy, ensuring power continuity during grid maintenance.
- Transformer Integration: Seamless coupling with dry-type or oil-cooled transformers for localized voltage stepping.
3. High Voltage (HV) Infrastructure
Grid-scale engineering for substations and massive industrial complexes (above 33kV).
Our expertise includes GIS Substations assembly and the installation of sophisticated Protection & Control Panels that interface directly with SCADA systems for real-time grid telemetry.
4. Professional Commissioning
Our commissioning team performs rigorous testing to ensure the system is fail-safe before final energization.
Simulating fault conditions (Primary/Secondary) to verify protection relays trip within milliseconds.
Measuring busbar joint tightness to the micro-ohm level to prevent electrical fire hotspots.
Technical Capability Summary
| Feature | Low Voltage (LV) | Medium Voltage (MV) | High Voltage (HV) |
|---|---|---|---|
| Typical Voltage | 415V - 1000V | 11kV - 33kV | 66kV - 132kV+ |
| Common Equipment | MDBs, MCCs, DBs | RMUs, VCBs, Transformers | GIS, AIS, Substation Bays |
| Main Focus | User Safety & Load Dist. | Network Redundancy | Grid Stability & Control |
Turnkey Support Includes:
- Engineering: Design drawings (SLDs) and Load Schedules.
- Approvals: Managing DEWA/ADDC/Etihad WE utility coordination.
- Safety: Comprehensive Method Statements and Risk Assessments (HIRA).
FAQs
Electrical Panel Installation Range
We specialize in the professional installation and commissioning of a comprehensive range of electrical panels tailored to the UAEās infrastructure requirements:
1. Low Voltage (LV) Panels (Up to 1000V)
- Main Distribution Boards (MDBs & SMDBs): Primary power entry and distribution for buildings.
- Motor Control Centers (MCCs): Specialized panels for controlling industrial motors and HVAC systems.
- Capacitor Banks: Automated units for power factor correction and energy efficiency.
2. Medium & High Voltage (MV/HV) Panels (11kV ā 132kV+)
- MV Switchgear: Air Insulated (AIS) or Gas Insulated (GIS) units for primary grid distribution.
- Ring Main Units (RMUs): Compact switchgear for secondary distribution and network redundancy.
- Package Substations: Integrated units containing transformers, MV switchgear, and LV boards.
3. Specialized Control Panels
- ATS Panels: Automatic Transfer Switches for seamless backup generator integration.
- PLC & Synchronization Panels: For industrial automation and paralleling multiple power sources.
Yes, we provide full-scale Design and Engineering (D&E) support as a critical first phase of any project. In the UAE, installation without rigorous engineering is often rejected by utilities like DEWA, ADDC, or Etihad WE. Our pre-installation support ensures that your electrical system is legally compliant, technically sound, and cost-effective.
Our Pre-Installation Engineering Services
1. Load Schedules
We calculate total connected load and maximum demand to ensure panels and cables are perfectly sized, preventing overheating or nuisance tripping.
2. Protection Coordination
Advanced simulations ensure “selectivity”āif a fault occurs, only the local breaker trips, preventing total building blackouts.
3. Single Line Diagrams (SLD) & Shop Drawings
Our engineers draft detailed blueprints that serve as the technical foundation for your network. These drawings include specifications for breakers, busbars, and protection relays.
4. Utility Approval & NOC Coordination
We manage technical submissions to local authorities to meet specific standards:
- DEWA / ADDC: Compliance for metering cabinets and transformer rooms.
- Civil Defence (DCD): Integration of fire-rated cables and emergency power systems.
Why Professional Design Matters
| Benefit | How it Works |
|---|---|
| Cost Savings | We prevent “over-engineering,” ensuring you don’t overspend on oversized equipment. |
| Safety | Fault level calculations ensure equipment handles surges without fire risks. |
| Speed | Accurate shop drawings prevent errors and costly “re-works” during installation. |
MV Switchgear Commissioning in the UAE
Expert validation for 11kV, 22kV, and 33kV Power Distribution Infrastructure.
In the UAE, Medium Voltage (MV) switchgear commissioning is a critical process governed by international standards (IEC 62271) and local utility regulations from DEWA, ADDC, and Etihad WE. Because MV systems handle immense power, this is the final “fail-safe” before energization.
1. Pre-Commissioning (Cold Testing)
Physical and electrical integrity must be verified before any power is introduced to the system.
Checking for transport damage, busbar bolt torque marks, and ensuring the IP rating remains intact.
Using a 5kV Megger to ensure zero leakage between phases or to the earth grounding system.
Measuring resistance across breaker poles (micro-ohms) to prevent overheating and potential fire risks.
2. Protection & Control Testing
This phase verifies the “intelligence” of the switchgear to ensure it reacts correctly during a fault.
- Secondary Injection Testing: Using kits like Omicron to confirm protection relays correctly identify overcurrent or earth faults.
- Primary Injection Testing: Verifying the entire protection chain from the physical busbars through to the digital relay.
- CT/VT Ratio & Polarity: Ensuring transformers accurately “step down” current for meters and protection logic.
3. Operational Safety Checks
For Gas Insulated Switchgear (GIS), we also perform SF6 Gas Quality & Pressure checks to ensure no leaks are present in the encapsulated chambers.
4. Technical Compliance Overview
| Test Category | Standard Requirement | Importance |
|---|---|---|
| Dielectric Test | Power Frequency Withstand | Prevents high-voltage flashovers. |
| Timing Test | Open/Close Speed | Ensures the breaker quenches arcs instantly. |
| Relay Coordination | Selectivity Study | Prevents minor faults from causing total blackouts. |
New Installations & System Upgrades
Comprehensive Lifecycle Management for UAE Power Infrastructure
Yes, we provide expert services for both brand-new “greenfield” projects and the retrofitting of existing “brownfield” electrical systems. Whether you are launching a new facility or modernizing a 20-year-old switchgear room, our engineering team handles the entire lifecycle to ensure compliance with 2026 safety standards.
1. New Installations (Greenfield)
We provide a turnkey “Power-on-Site” solution for new constructions, managing everything from design to utility energization.
- Infrastructure Design: SLDs and load schedules approved by DEWA/ADDC.
- Civil Coordination: Technical specs for transformer rooms and trenching.
- Full Deployment: Installation of panels, busbars, and main cabling.
2. Upgrades & Retrofitting (Brownfield)
If your system is struggling with increased loads or obsolete components, we provide modernized upgrades with minimal downtime.
Common Upgrade Services:
- ACB/MCCB Retrofitting: Replacing old breakers with modern digital units.
- Capacity Expansion: Adding new tiers to existing MDBs for facility expansion.
- Relay Modernization: Swapping mechanical relays for microprocessor-based units.
- Power Factor Correction: Upgrading capacitor banks to eliminate utility penalties.
Decision Matrix: New vs. Upgrade
| Feature | New Installation | System Upgrade/Retrofit |
|---|---|---|
| Capital Cost | High (Full equipment cost) | Lower (Component-based cost) |
| Downtime | N/A (New site) | Minimized (Scheduled cut-over) |
| Compliance | Built to latest codes | Brought up to latest codes |
| Footprint | Requires new space | Uses existing space |
Yes, absolute compliance is the foundation of our service.
1. Strict Adherence to DEWA Regulations
Every project follows the DEWA Regulations for Electrical Installations (the “Green Book”). Key areas of compliance include:
Strict Red/Yellow/Blue phase coding and ferrule numbering for lifecycle safety.
Enclosures rated IP54/IP65 to withstand extreme UAE desert dust and humidity.
Maintaining front/rear access (750mm-1000mm) for emergency exits and maintenance.
2. Protection & Safety Standards
Safety is a legal requirement. Our installations feature:
- Earth Leakage Protection: ELCB/RCCB installation (30mA for domestic / 300mA for industrial) per UAE code.
- DCD Approved Materials: Fire-rated cables and halogen-free conduits compliant with Dubai Civil Defence life safety codes.
- Third-Party Verification: Independent lab testing for relay settings on all MV/HV projects.
3. The Approval & Inspection Lifecycle
| Phase | Action for Compliance | Requirement |
|---|---|---|
| Design | NOC (No Objection Certificate) | Technical drawing submission to utility authorities. |
| Material | Approved Vendor List | Using only “Pre-Qualified” utility-grade equipment. |
| Site Audit | Pre-Inspection Mock-Up | Internal audit by lead engineers before the official visit. |
| Final | Meter Connection | Utility inspector sign-off for final seal and power-on. |
4. International Quality Benchmarks
While meeting local codes, our internal quality is aligned with global benchmarks:
IEC 61439 (LV Switchgear Assemblies)
IEC 62271 (MV/HV Switchgear)
1. Industrial & Manufacturing
Supporting heavy-duty operations in Jebel Ali (JAFZA) and KIZAD that require robust, high-availability power distribution.
- Motor Control Centers (MCCs) for production lines.
- Variable Frequency Drive (VFD) Panels.
- Harmonic filtration to protect sensitive CNC machinery.
2. Commercial & High-Rise
Foundational power for the Business Bay and Dubai Marina skylines, where efficiency and life safety are paramount.
- Main Distribution Boards (MDBs) & SMDBs.
- Automatic Transfer Switches (ATS) for backup.
- BMS integration for smart energy monitoring.
3. Infrastructure & Utilities
Partnering with developers on “Smart City” projects, district cooling, and water desalination facilities.
- 11kV/33kV Ring Main Units (RMUs).
- Package Substations and Transformer integration.
- DEWA/ADDC compliant utility metering.
4. Data Centers & ICT
Mission-critical power solutions for cloud hubs where 100% uptime is the only acceptable standard.
- Specialized Synchronization Panels.
- UPS distribution networks.
- Continuous thermal monitoring of busbar joints.
5. Renewable Energy (Solar)
Supporting Shams Dubai initiatives to integrate rooftop and large-scale solar into the national grid.
- AC/DC Combiner Boxes with surge protection.
- Bi-directional net-metering panels.
- Inverter synchronization and grid-tie protection.
Sector Capability Comparison
| Industry Sector | Primary Power Need | Typical Equipment |
|---|---|---|
| Industrial | High Durability & Torque | MCCs, VFDs, Soft Starters |
| Commercial | Efficiency & Life Safety | MDBs, Capacitor Banks, ATS |
| Data Centers | 100% Redundancy | Sync Panels, STS, UPS Dist. |
| Solar | Grid Compatibility | Bi-directional Meters, DC Panels |
